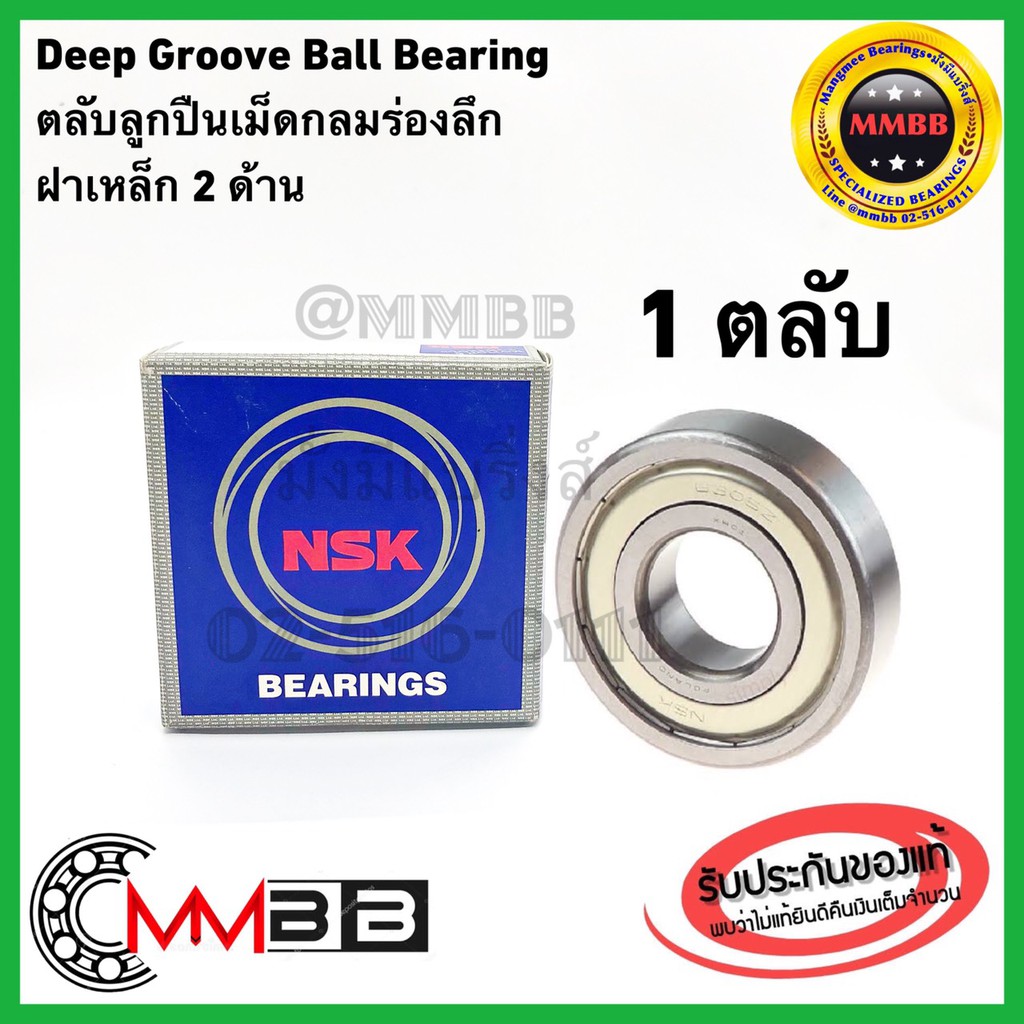

NSK 6202 ZZ 6202 2Z ฝาเหล็ก NSK แท้ ตลับลูกปืน แบริ่งส์ JAPAN 6202 Deep Groove Ball Bearing size 15*35*11 mm Single Row

NSK 6202 ZZ 6202 2Z ฝาเหล็ก NSK แท้ ตลับลูกปืน แบริ่งส์ JAPAN 6202 Deep Groove Ball Bearing size 15*35*11 mm Single Row

NSK Metric Ball Bearings - Shielded

NSK single-row deep groove ball bearings are the most common type of rolling bearings. These shielded (2Z or ZZ) bearings are fitted with two metal dust shields to prevent ingress of dirt and foreign matter. Available in a variety of metric sizes and found in a wide range of applications in many industries.

NSK was founded in 1916 and produced the first ball bearings made in Japan. NSK manufactures a wide range of high-quality products, such as bearings, automotive products and precision machine components. As a solution provider, NSK has helped customers in various industries.

Features and Benefits

Accepts radial and axial loads
High speed operation
Primarily intended for applications where the bearing inner ring rotates
If the outer ring rotates there is a danger that grease may be lost from the bearing at high speeds

High quality steel shielded Deep groove ball bearing from the world leader NSK, the worlds largest ball bearing manufacturer offering unparalelled quality
Basic dimensions
Width [B] 11 mm
Inner diameter [d] 15 mm
Outer diameter [D] 35 mm
Physical properties
Load rating dynamic 780 kgf
Load rating dynamic [Cr] 7650 n
Limiting speed grease 20000 rpm
Load rating static 380 kgf
Weight 0.045 kg
Load rating static [C0r] 3750 n
Other data
Radius min [r] 0.6 mm
Seal type Two Metal Shield ZZ
Ref rad max [ra] 0.6 mm
Ref diam groove max [Da] 31 mm
Factor 13.2 factor
Ref diam shaft max [da] 20.5 mm
Ref diam shaft min [da] 19 mm




- ตลับลูกปืนคุณภาพ
- ราคาเป็นธรรม
- รับประกันคุณภาพวงนอก 35 mm. รูใน 15 mm. ความหนา 11 mm.
