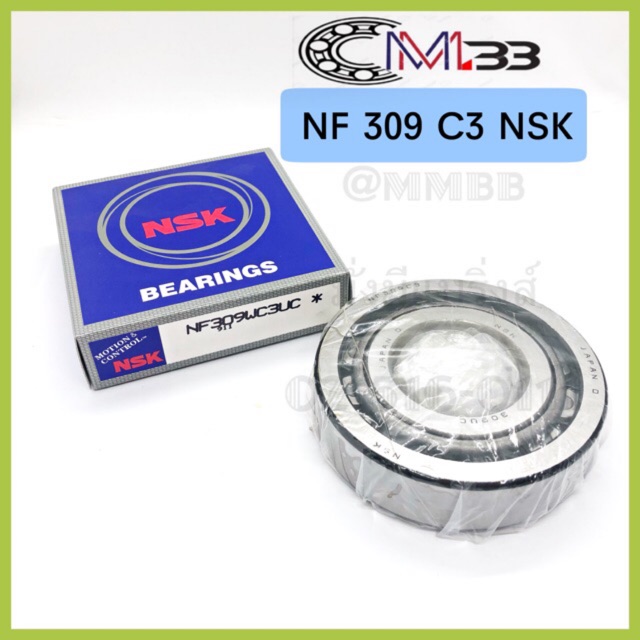

NSK ลูกปืน NF 309 / ตลับลูกปืนเม็ดหมอน NF309 (1ตับ) NF309 NSK Cylindrical Roller Bearings

NF309 NSK
Cylindrical Roller Bearing Single Row

วงนอก 100 mm.,รูใน 45 mm.,ความหนา 25 mm.

NSK ลูกปืนเม็ดหมอน NF309
ตลับลูกปืนคุณภาพ
ราคาเป็นธรรม
รับประกันคุณภาพ
วงนอก 100 mm.
รูใน 45 mm.
ความหนา 25 mm.

Cylindrical roller bearings NF 309
Bearing number : NF 309
NF309 (12309) NSK Cylindrical Roller Bearings , Demensions: 45mm(inner diameter), 100mm(outer diameter), 25mm(width)


Size (mm) : 45x86.5x25

Brand : NSK

Bore Diameter (mm) : 45

Outer Diameter (mm) : 86,5

Width (mm) : 25

Bearing dimensions and specification in NSK catalogue:

d - 45 mm

D - 100 mm

Ew - 86,5 mm

B - 25 mm

C - 25 mm

r min. - 1,5 mm

r1 min. - 1,5 mm

da min. - 53 mm

Db min. - 77 mm

ra max. - 1,5 mm

rb max. - 1,5 mm

Db max - 92 mm

Weight - 0,869 Kg

Basic dynamic load rating (C) - 74 kN

Basic static load rating (C0) - 71 kN

(Grease) Lubrication Speed - 6 300 r/min

NSK NF309 bearing, NSK NF309 bearing related information are: Model NF309 inner diameter: 45 outer Diameter: 100 Thickness: 25 Brand: NSK Bearings: Cylindrical Roller Bearings, you want to know more about NSK NF309 bearing related information, you can consult online or call the hotline, we will detail for you. NSK NF309 bearing using a wide range, NSK NF309 bearings are mainly used in construction machinery, machine tools, automobiles, metallurgy, mining, petroleum, machinery, electricity, railways and other industries, the company sells NSK NF309 bearing price, quality assurance, all aspects of services, do everything to meet customer demand.



(Oil) Lubrication Speed - 7 500 r/min

Tags : NSK , 45x86.5x25
